Advanced MXM & MXS Series Mechanical & Servo Presses
Experience the power and precision of SIMPAC MXM single action eccentric mechanical presses and MXS 2-point free motion servo presses (630t - 1000t). Built for heavy-duty stamping, energy efficiency, and flexible slide motion kinematics.
Advanced Mechanical Technology
Revolutionizing industrial manufacturing with precision mechanical press systems
Precision Mechanical Drive
Advanced mechanical drive systems provide consistent performance and reliable operation for continuous production.
High-Speed Operation
Optimized mechanical systems deliver up to 250% faster cycle times compared to traditional hydraulic presses.
Adaptive Control
Intelligent mechanical controls automatically adjust parameters for optimal performance across different materials.
Real-Time Monitoring
Comprehensive data collection and analysis for predictive maintenance and quality assurance.
Energy Efficient
Optimized mechanical systems reduce energy consumption by up to 30% compared to hydraulic alternatives.
Safety First
Advanced safety systems with redundant sensors and emergency stop capabilities.

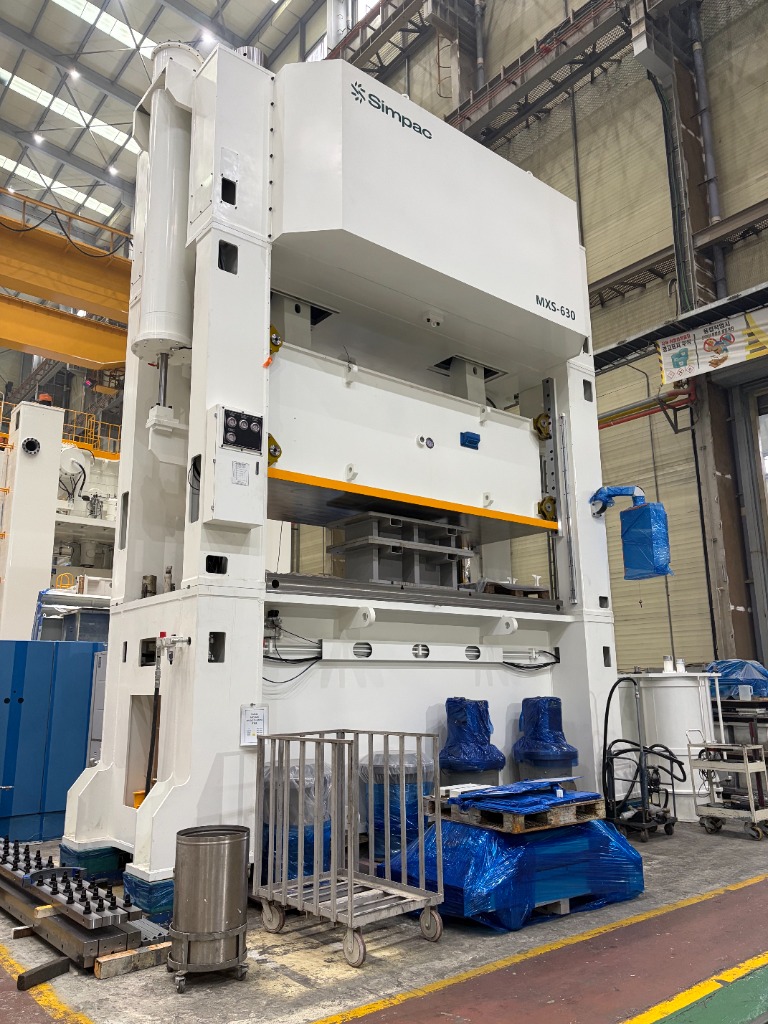

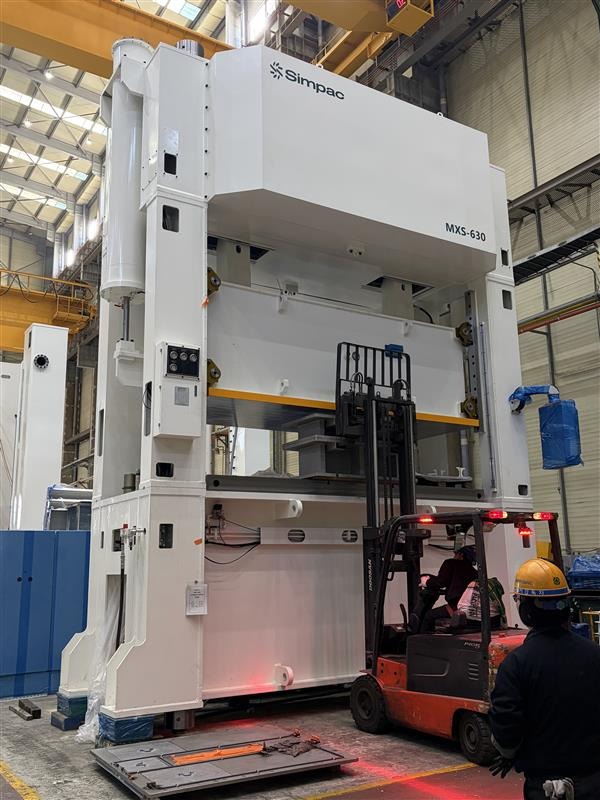

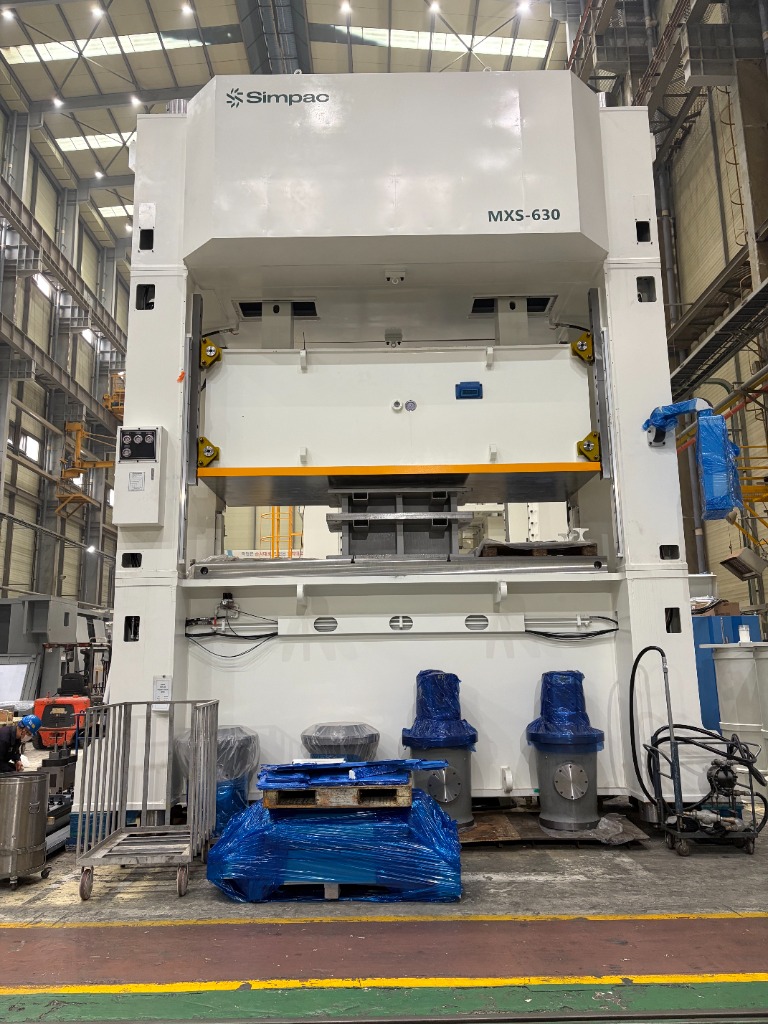

MXM/MXS Series Gallery
Explore real factory installations and precision engineering of SIMPAC MXM & MXS Series
MXM/MXS Series Overview
Advanced MXM mechanical eccentric and MXS free motion servo press technology for high-rigidity forming
Type
Mechanical Presses
Press Capacity
80 - 300 tons
Part Size
Small to Large
Drive System
Mechanical Drive
Applications
Cutting, stamping, bending, embossing, drawing & integration of downstream processes
Description
These mechanical presses are optimized for high-speed forming processes and offer maximum reliability in production. High-quality parts can be consistently achieved due to the high stiffness value of the press body and mechanical drive system.
Features & Benefits
Why choose SIMPAC mechanical presses
Flexible Installation
SIMPAC's product portfolio of mechanical presses can be installed as single presses in progressive or transfer mode, double press systems for more flexibility, or fully automated press lines.
Compact Design
For mechanical presses with a press capacity below 500 tons, the compact design will require little floor space and minimal foundation requirements.
Korean Quality
Drive systems, controls, lubrication, and safety systems are of Korean origin and guarantee a long service life, maximum reliability, and a supply of spare parts.
High Precision
The slide guiding system ensures a high level of tilting rigidity and reduces the cutting impact when processing high-strength materials.
Safety Protection
Mechanical overload protection to protect both press and dies with advanced safety monitoring systems.
Advanced Control
Programmable stroke control and comprehensive press force monitoring for optimal process control.
Standard Equipment
Included with every mechanical press
Electrical Slide Adjustment
Mechanical Slide Locking
Automatic Slide Counterbalancing
Vibration Isolated Installation
Central Circulation Lubrication
Press Force Monitoring
Technical Specifications
Detailed specifications for MXM Mechanical Eccentric and MXS Free Motion Servo press series
MXM Series (Mechanical Eccentric Press)
Single action 2 Points Mechanical Eccentric Crank motion
| Technical Specifications | Unit | MXM-630 | MXM-800 | MXM-1000 |
|---|---|---|---|---|
| Press Capacity | ton | 630 | 800 | 1000 |
| Stroke Rate | spm | 5 - 50 | 5 - 50 | 5 - 50 |
| Stroke Length | mm | 400 | 400 | 400 |
| Slide Adjustment | mm | 300 | 300 | 300 |
| Die Height (SDAU) | mm | 850 | 850 | 850 |
| Slide Dimension (W x D) | mm | 4250 x 1600 | 4600 x 1800 | 4600 x 1800 |
| Bolster Dimension (W x D) | mm | 4250 x 1600 | 4600 x 1800 | 4600 x 1800 |
MXS Series (2-Point Free Motion Servo Press)
Programmable slide motion kinematics with energy recovery system
| Technical Specifications | Unit | MXS-630 | MXS-800 | MXS-1000 |
|---|---|---|---|---|
| Press Capacity | ton | 630 | 800 | 1000 |
| Stroke Rate | spm | 5 - 50 | 5 - 50 | 5 - 50 |
| Stroke Length | mm | 400 | 400 | 400 |
| Slide Adjustment | mm | 300 | 300 | 300 |
| Die Height (SDAU) | mm | 850 | 850 | 850 |
| Slide Dimension (W x D) | mm | 4250 x 1600 | 4600 x 1800 | 4600 x 1800 |
| Bolster Dimension (W x D) | mm | 4250 x 1600 | 4600 x 1800 | 4600 x 1800 |
* SDAU = Slide stroke down, adjustment up
** All MXM/MXS models feature high-rigidity frames and advanced drive systems
*** Subject to technical modifications and improvements
