Advanced Blanking Line Automation
Experience the efficiency and precision of our advanced blanking line automation systems. Designed for high-volume production with maximum reliability and minimal downtime.
Advanced Blanking Line Technology
Revolutionizing industrial manufacturing with precision blanking automation systems
Automated Material Handling
Advanced robotic systems provide seamless material flow from coil to finished parts with minimal human intervention.
High-Speed Production
Optimized blanking systems deliver up to 300% faster cycle times compared to traditional manual operations.
Intelligent Control
Smart automation controls automatically adjust parameters for optimal performance across different materials and thicknesses.
Real-Time Monitoring
Comprehensive data collection and analysis for predictive maintenance and quality assurance.
Energy Efficient
Optimized automation systems reduce energy consumption by up to 40% compared to traditional operations.
Safety First
Advanced safety systems with redundant sensors, light curtains, and emergency stop capabilities.

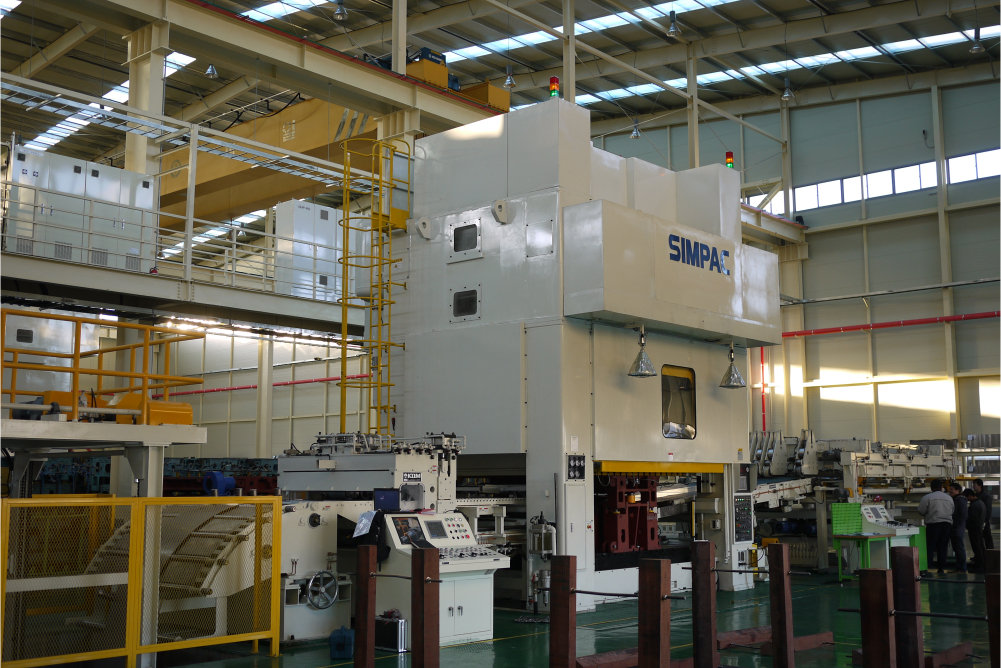

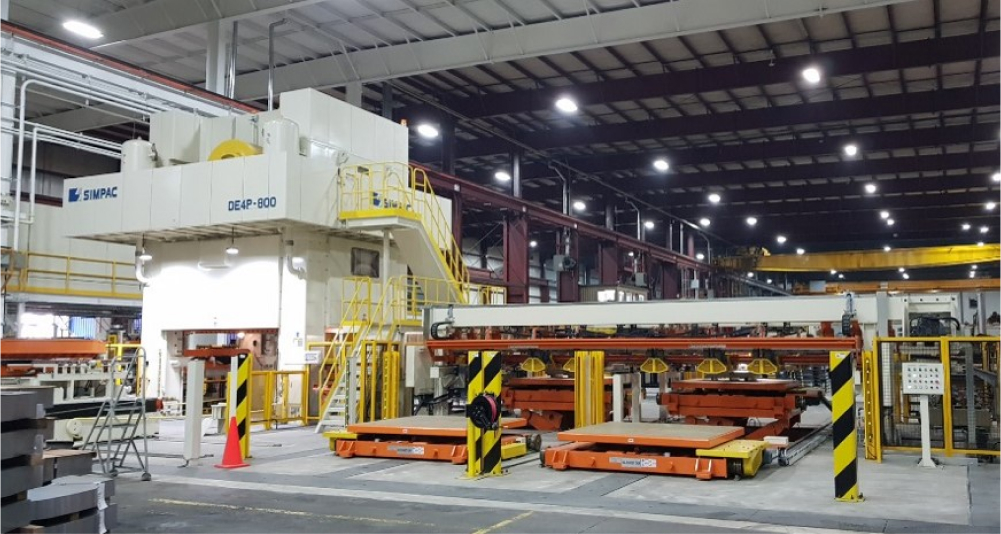

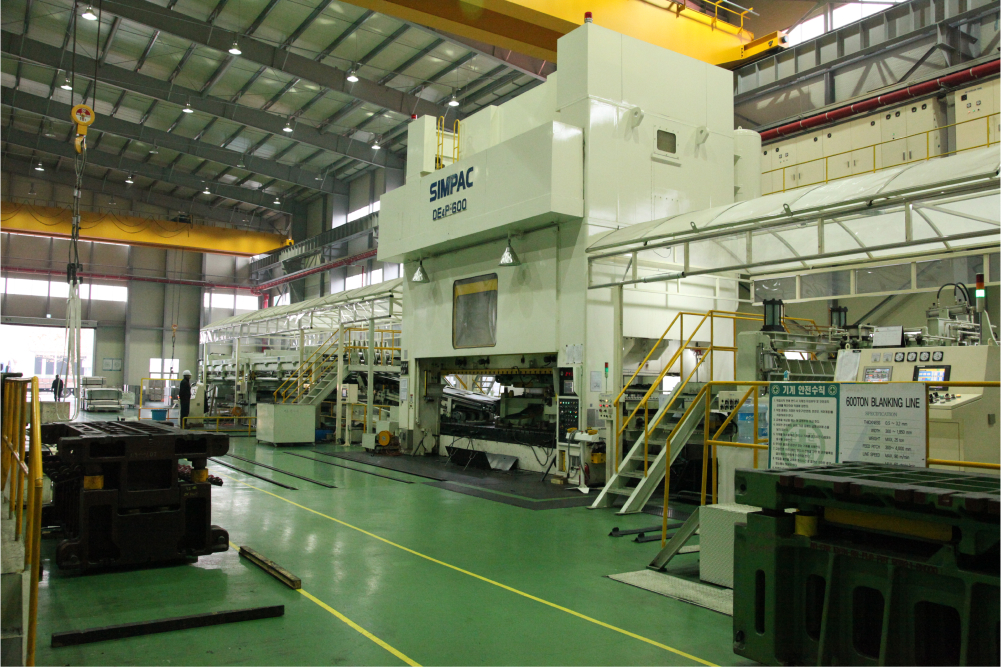

Blanking Line Automation Gallery
Explore our advanced blanking line automation systems in action
Blanking Line Automation Overview
Advanced automation technology for highly efficient blanking and cutting processes
Type
Automation Systems
Production Capacity
Up to 90 m/min line speed
Material Thickness
0.5 - 3.0 mm
Automation Level
Full Automation
Applications
Blanking, cutting, punching, notching, trimming & integration with downstream processes
Description
Our blanking line automation systems are optimized for high-speed cutting processes and offer maximum reliability in production. High-quality parts can be consistently achieved due to the advanced automation controls and precision material handling systems.
Features & Benefits
Why choose SIMPAC mechanical presses
Flexible Configuration
SIMPAC's blanking line automation can be configured as single-line systems, multi-line configurations for increased flexibility, or fully integrated production cells.
Space Efficient
Compact automation design requires minimal floor space while maintaining high production capacity and easy integration into existing facilities.
Korean Quality
Automation systems, controls, safety systems, and robotic components are of Korean origin and guarantee long service life, maximum reliability, and comprehensive spare parts support.
High Precision
Advanced positioning systems ensure high accuracy in material handling and cutting operations with minimal waste and maximum quality.
Safety Protection
Comprehensive safety systems including light curtains, emergency stops, and automated safety monitoring for operator protection.
Advanced Control
Intelligent automation controls with programmable sequences and comprehensive monitoring for optimal production control.
Standard Equipment
Included with every mechanical press
Automated Material Handling
Conveyor Systems
Quality Control Systems
Control Interface
Safety Systems
Production Monitoring
Technical Specifications
Detailed specifications for our blanking line automation systems
Basic Specifications
| Material | Cold-roll / Hot-rolled Steel Coil, High Tensile Strength Steel Coil, AL Coil |
| Shape of Sheet Blanks | Rectangular, Trapezoid, Parallelogram and any shapes (Blanking Die) |
| Width of Coil | Min. 500 - Max. 2000mm |
| Weight of Coil, Max | Max. 30tons |
| Material Thickness | 0.5 - 3.0mm |
| Sheet Length | 300 - 4500mm |
| Tensile Strength of Material, Max | Max. 980N/mm², Min. 590N/mm² |
| Yield Strength, Max | Max. 790N/mm², Min. 450N/mm² |
Line Specifications
| Uncoiling Speed | 0 - 90 m/min |
| Feeding Speed | Max. 180m/min |
| Starting Speed During Adjust Period | 15m/min |
| Line Speed | Max. 90m/min |
BK Line Entry Part Composition
| Component | Quantity |
|---|---|
| Coil Skid Car or Coil Skid Zone: Option | 2 Set |
| Uncoiling Part Drum Support / Hold Down Roll | 1 Set |
| Coil Peeling Part | 1 Set |
| Washing Unit | 1 Set |
| Leveler | 1 Set |
| Coil Looping Device | 1 Set |
| Main Feeder | 1 Set |
| End Feeder | 1 Set |
| Oscillating Shear | 1 Set |
| Full Covering / Dust Covering | 1 Set |
BK Line Exit Part Composition
| Component | Quantity |
|---|---|
| Telescopic Conveyor | 1 Set Option (1Row / 4Row) |
| Piler | 1 Set |
| Piler Car | 4 Set Option (25 Set / 4 Set) |
| Exit Shear | 1 Set Option |
| Reject Box / Inspection Table | 1 Set Option |
Ready to Transform Your Manufacturing?
Discover how our blanking line automation can revolutionize your production process
