Advanced CX/NCD Series Mechanical Presses
Experience the power and precision of our CX/NCD series mechanical presses. Built for reliability, efficiency, and exceptional performance in demanding industrial applications.
Advanced Mechanical Technology
Revolutionizing industrial manufacturing with precision mechanical press systems
Precision Mechanical Drive
Advanced mechanical drive systems provide consistent performance and reliable operation for continuous production.
High-Speed Operation
Optimized mechanical systems deliver up to 250% faster cycle times compared to traditional hydraulic presses.
Adaptive Control
Intelligent mechanical controls automatically adjust parameters for optimal performance across different materials.
Real-Time Monitoring
Comprehensive data collection and analysis for predictive maintenance and quality assurance.
Energy Efficient
Optimized mechanical systems reduce energy consumption by up to 30% compared to hydraulic alternatives.
Safety First
Advanced safety systems with redundant sensors and emergency stop capabilities.

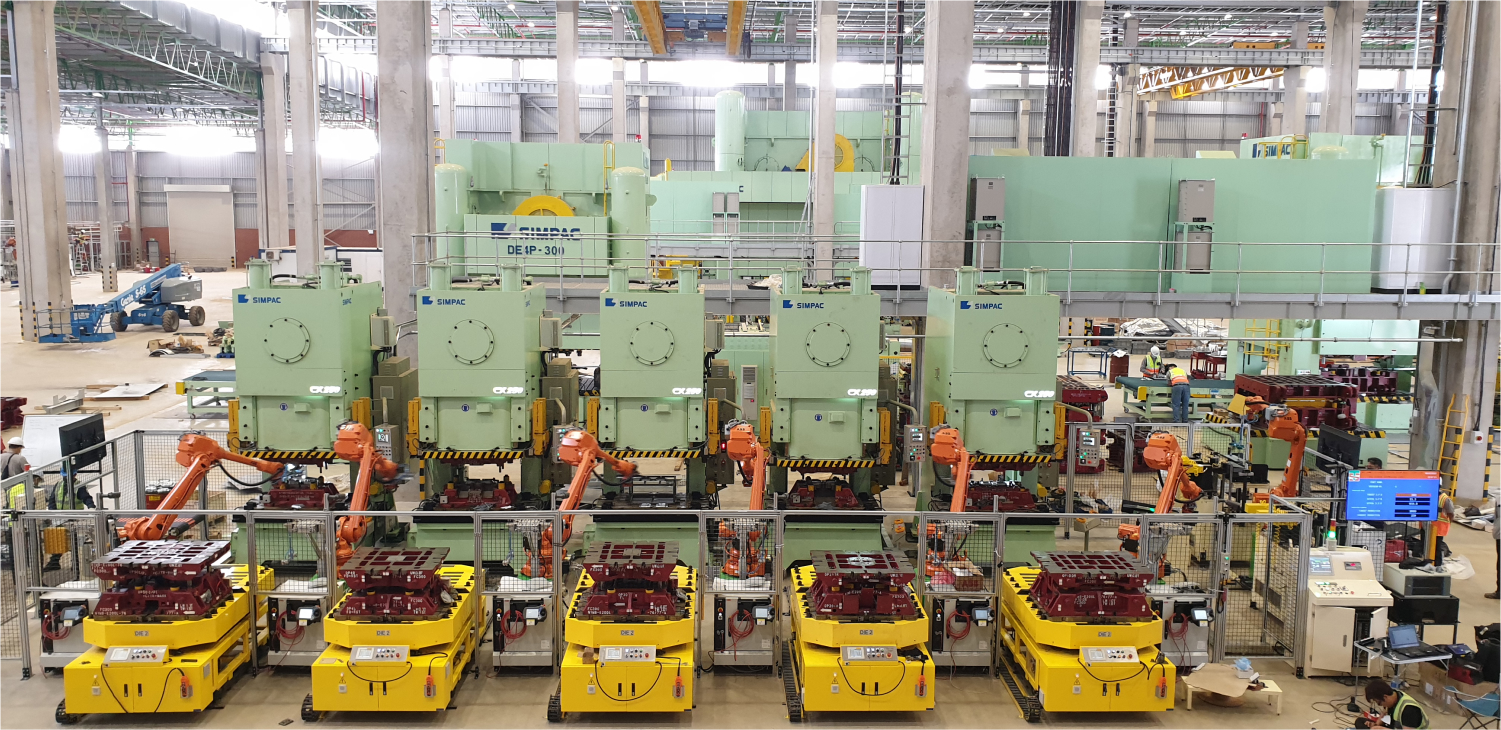

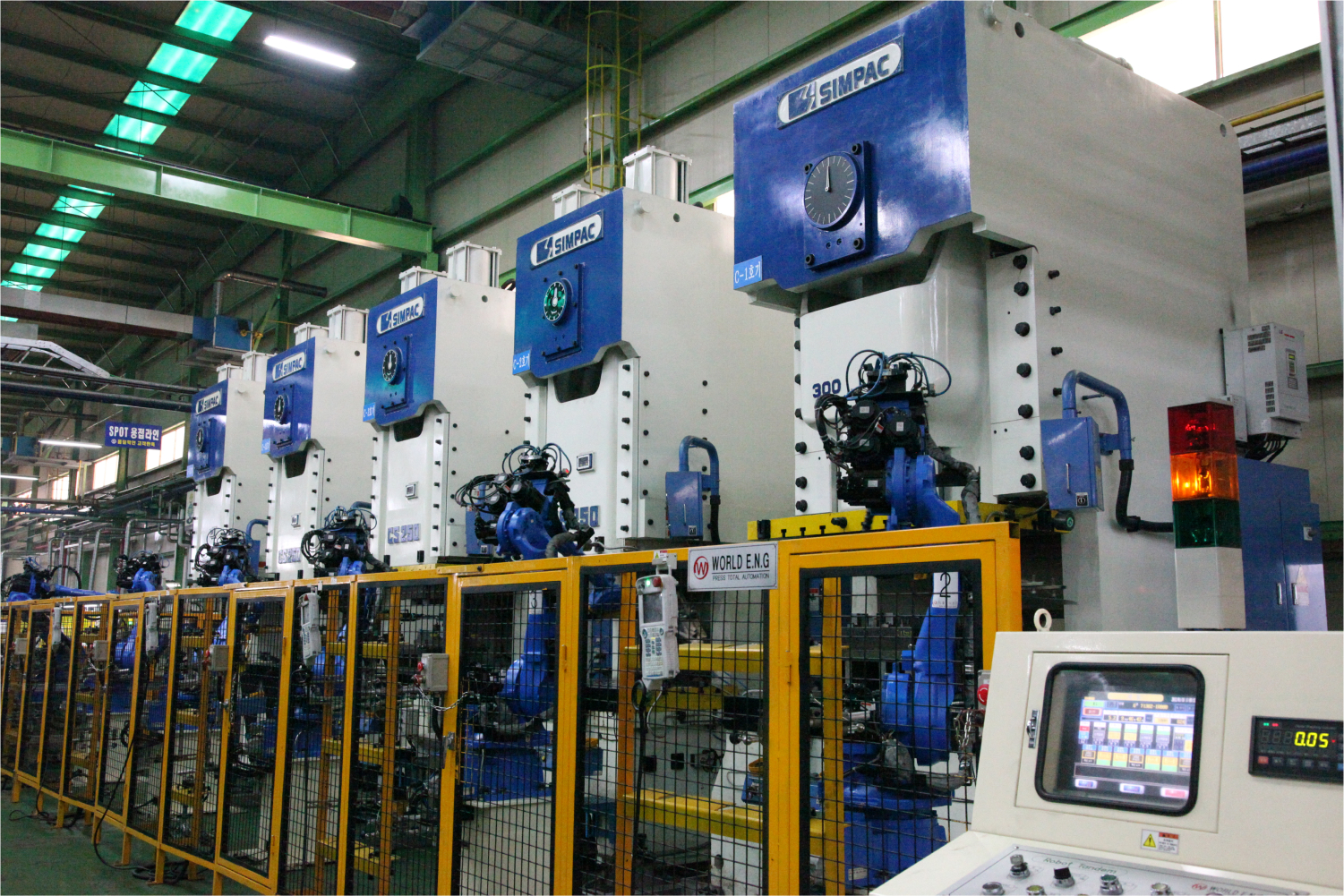

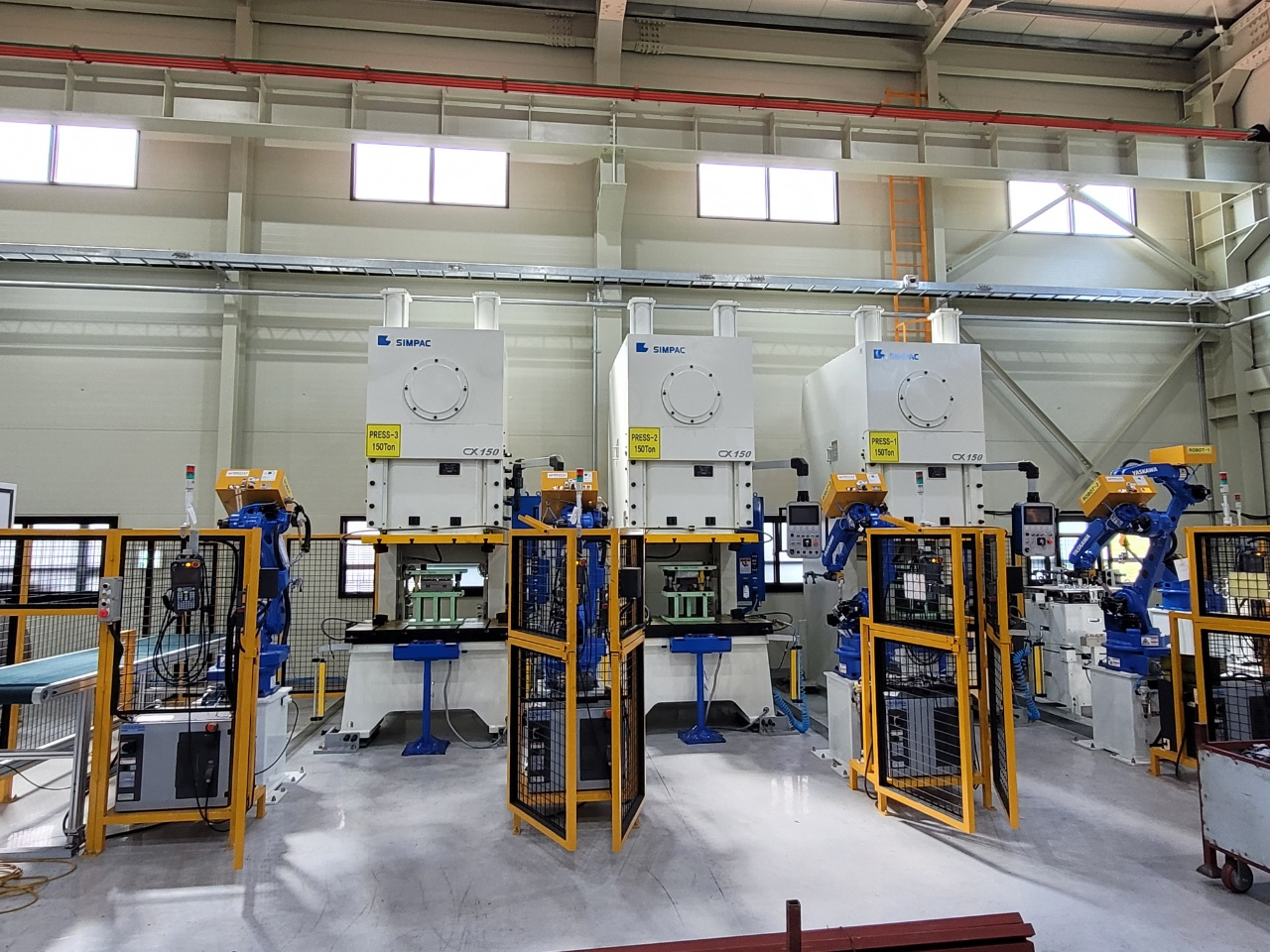

CX/NCD Series Gallery
Explore our advanced CX/NCD series mechanical press technology in action
CX/NCD Series Overview
Advanced CX/NCD series mechanical press technology for highly efficient forming processes
Type
Mechanical Presses
Press Capacity
80 - 300 tons
Part Size
Small to Large
Drive System
Mechanical Drive
Applications
Cutting, stamping, bending, embossing, drawing & integration of downstream processes
Description
These mechanical presses are optimized for high-speed forming processes and offer maximum reliability in production. High-quality parts can be consistently achieved due to the high stiffness value of the press body and mechanical drive system.
Features & Benefits
Why choose SIMPAC mechanical presses
Flexible Installation
SIMPAC's product portfolio of mechanical presses can be installed as single presses in progressive or transfer mode, double press systems for more flexibility, or fully automated press lines.
Compact Design
For mechanical presses with a press capacity below 500 tons, the compact design will require little floor space and minimal foundation requirements.
Korean Quality
Drive systems, controls, lubrication, and safety systems are of Korean origin and guarantee a long service life, maximum reliability, and a supply of spare parts.
High Precision
The slide guiding system ensures a high level of tilting rigidity and reduces the cutting impact when processing high-strength materials.
Safety Protection
Mechanical overload protection to protect both press and dies with advanced safety monitoring systems.
Advanced Control
Programmable stroke control and comprehensive press force monitoring for optimal process control.
Standard Equipment
Included with every mechanical press
Electrical Slide Adjustment
Mechanical Slide Locking
Automatic Slide Counterbalancing
Vibration Isolated Installation
Central Circulation Lubrication
Press Force Monitoring
Technical Specifications
Detailed specifications for our mechanical press series
CX Series
| Technical Specifications | Unit | CX-80 ST/LS | CX-110 ST/LS | CX-150 ST/LS | CX-200 ST/LS | CX-250 ST/LS | CX-300 ST/LS |
|---|---|---|---|---|---|---|---|
| Press Capacity | ton | 80 | 110 | 150 | 200 | 250 | 300 |
| Rated Tonnage Point | mm | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 7.0 |
| Stroke Rate | spm | 70 - 110 50 - 80 |
65 - 100 45 - 70 |
60 - 90 40 - 60 |
45 - 70 35 - 50 |
45 - 70 35 - 50 |
25 - 40 20 - 35 |
| Stroke Length | mm | 100 / 160 | 110 / 180 | 130 / 250 | 160 / 300 | 200 / 300 | 250 / 350 |
| Slide Adjustment | mm | 120 | 120 | 150 | 150 | 150 | 180 |
| Die Height | mm | 350 / 400 | 400 / 450 | 450 / 500 | 500 / 550 | 550 / 600 | 600 / 600 |
| Slide Dimension | mm | 850x500 | 1000x600 | 1200x700 | 1300x800 | 1450x850 | 1700x900 |
| Bolster Dimension | mm | 1000x600 | 1150x700 | 1400x800 | 1500x900 | 1700x1000 | 1900x1000 |
| Working Height | mm | 900 | 900 | 900 | 900 | 950 | 1100 |
| Overall Height | mm | 3200 | 3500 | 3900 | 4200 | 4600 | 5300 |
| Die Cushion Capacity | ton | 7 | 11 | 15 | 15 | 15 | 15 |
| Die Cushion Stroke | mm | 80 | 100 | 110 | 130 | 130 | 130 |
| Die Cushion Pad area | mm | 500x300 | 560x400 | 680x720 | 760x460 | 760x460 | 860x460 |
NCD Series
| Model | Unit | NCD-110 ST / HS | NCD-160 ST / HS | NCD-200 ST / HS | NCD-250 ST / HS | NCD-300 |
|---|---|---|---|---|---|---|
| Press Capacity | ton | 110 | 160 | 200 | 250 | 300 |
| Rated Tonnage Point | mm | 5.0 / 2.5 | 6.0 / 3.0 | 6.0 / 3.5 | 6.0 / 3.5 | 6.0 |
| Stroke Rate | spm | 35 - 65 50 - 100 |
30 - 55 40 - 85 |
25 - 45 35 - 70 |
20 - 35 30 - 55 |
20 - 35 |
| Stroke Length | mm | 180 / 110 | 200 / 130 | 250 / 150 | 280 / 170 | 300 |
| Slide Adjustment | mm | 90 | 100 | 110 | 120 | 150 |
| Die Height | mm | 400 / 350 | 450 / 400 | 500 / 500 | 550 / 450 | 550 |
| Slide Dimension | mm | 1350x550 | 1500x600 | 1850x650 | 2100x700 | 2350x900 |
| Bolster Dimension | mm | 1900x700 | 2150x750 | 2500x850 | 2750x950 | 3000x1100 |
| Working Height | mm | 900 | 900 | 1000 | 1100 | 1100 |
| Overall height | mm | 3300 | 3400 | 3900 | 4400 | 4800 |
* SDAU = Slide stroke down, adjustment up | ST = Standard, HS = High-Speed, LS = Long Stroke
** All CX/NCD models feature advanced mechanical drive systems with precision control
*** Subject to technical modifications and improvements
