DL/DTL Series Mechanical Press Excellence

Discover the precision and reliability of our DL/DTL series mechanical presses. Engineered for exceptional performance in demanding industrial applications with advanced mechanical technology.

View Gallery Get Quote
±0.01mm Precision
300% Efficiency
24/7 Operation

DL/DTL Series Technology

Advanced mechanical press systems designed for precision and reliability

Precision Mechanical Drive

Advanced mechanical drive systems provide consistent performance and reliable operation for continuous production.

High-Speed Operation

Optimized mechanical systems deliver up to 300% faster cycle times compared to traditional hydraulic presses.

Enhanced Safety Features

Comprehensive safety systems including light curtains, emergency stops, and advanced monitoring for operator protection.

Performance Monitoring

Real-time monitoring and data collection for optimal performance tracking and predictive maintenance.

Automation Ready

Designed for seamless integration with automation systems for enhanced productivity and efficiency.

Easy Maintenance

Accessible design for simplified maintenance procedures and reduced downtime.

DL/DTL Series Overview

Comprehensive mechanical press solutions for diverse industrial applications

DL Series - Standard Mechanical Presses

The DL series represents our standard mechanical press line, offering reliable performance and consistent quality for general industrial applications. These presses feature:

  • Robust mechanical drive systems
  • Precision control mechanisms
  • Durable construction materials
  • Flexible configuration options
  • Cost-effective solutions

DTL Series - Enhanced Technology Edition

The DTL series represents our advanced mechanical press technology with enhanced features and capabilities. These premium presses include:

  • Advanced control systems
  • Enhanced precision mechanisms
  • Integrated monitoring capabilities
  • Automation-ready interfaces
  • Premium performance features

Technical Specifications

Comprehensive technical data for DL/DTL Series mechanical presses

DL2P Series - 2-Point Design Mechanical Presses

Model Unit DL2P-600 DL2P-800 DL2P-1000 DL2P-1200 DL2P-1400
Press Capacity ton 600 800 1000 1200 1400
Rated Tonnage Point mm 13.0 13.0 13.0 13.0 13.0
Stroke Rate spm 12-24 12-24 12-24 12-24 12-24
Stroke Length mm 700 700 700 700 700
Slide Adjustment mm 600 600 600 600 600
Die Height mm 1200 1200 1200 1200 1200
Slide Dimension mm 2800x1600 3000x1800 3000x1800 3000x1800 3000x1800
Bolster Dimension mm 2800x1600 3000x1800 3000x1800 3000x1800 3000x1800

* SDAU = Slide stroke down, adjustment up | ST = Standard, HS = High-Speed, LS = Long Stroke | Subject to technical modifications.

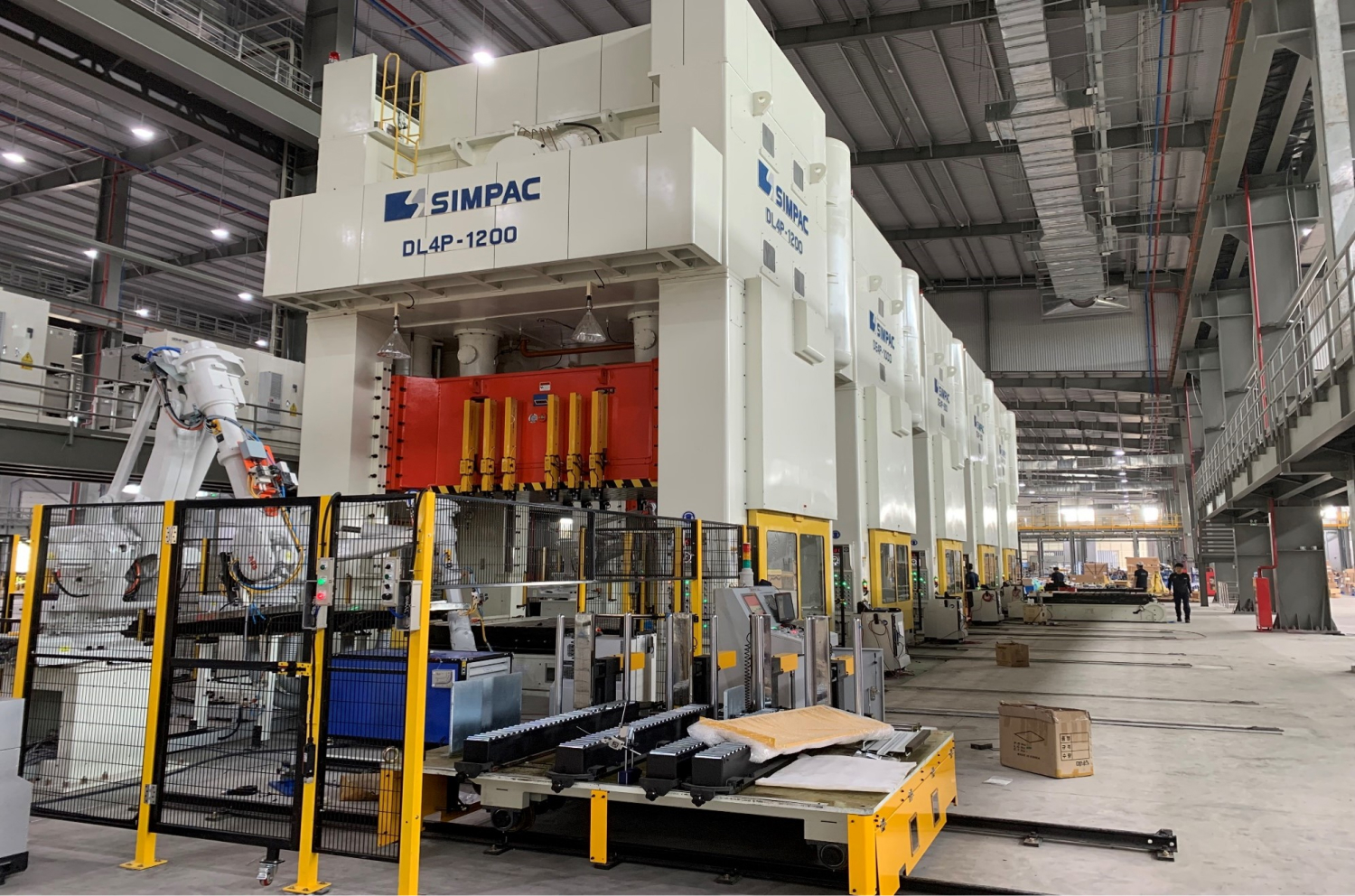

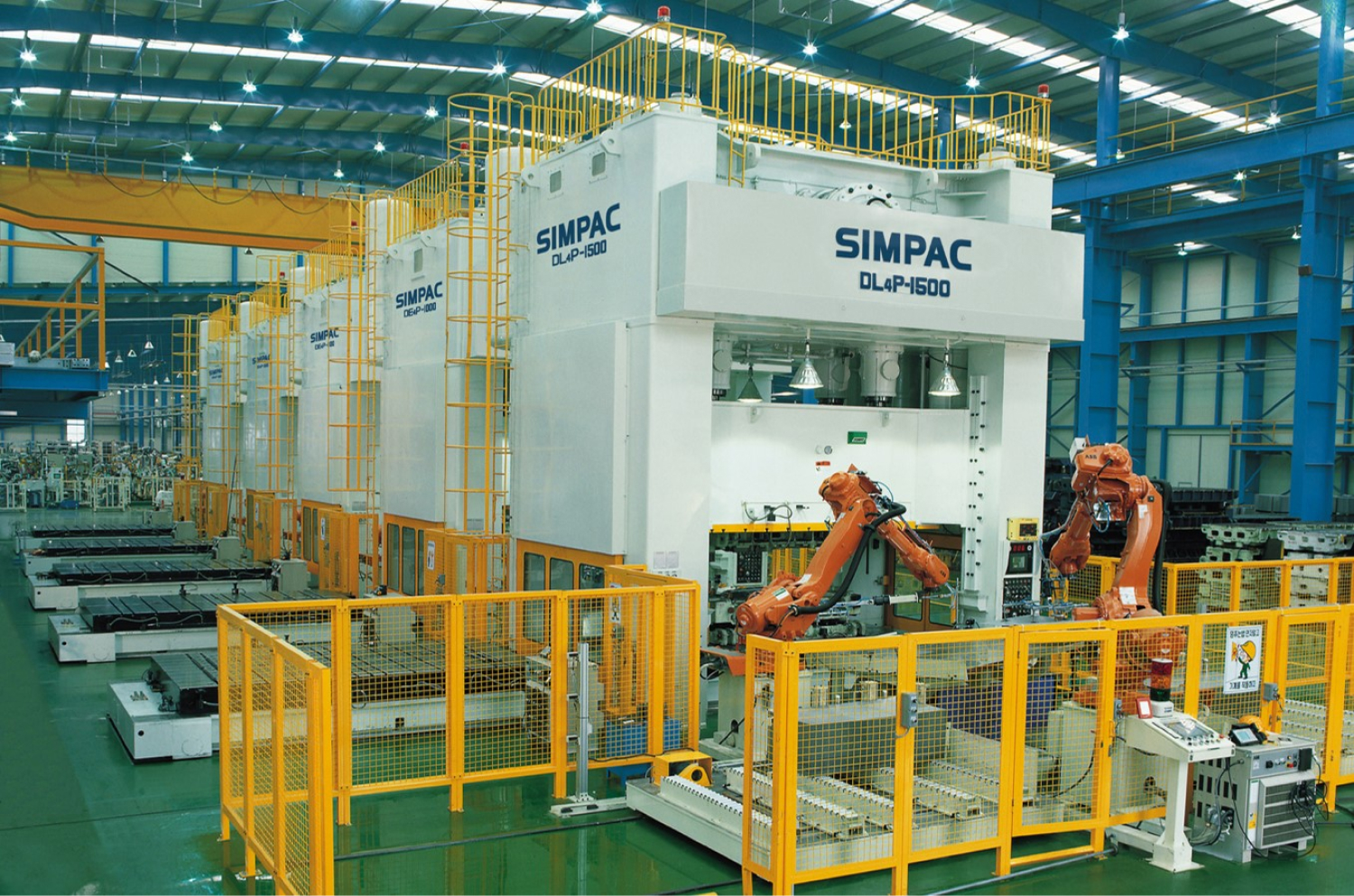

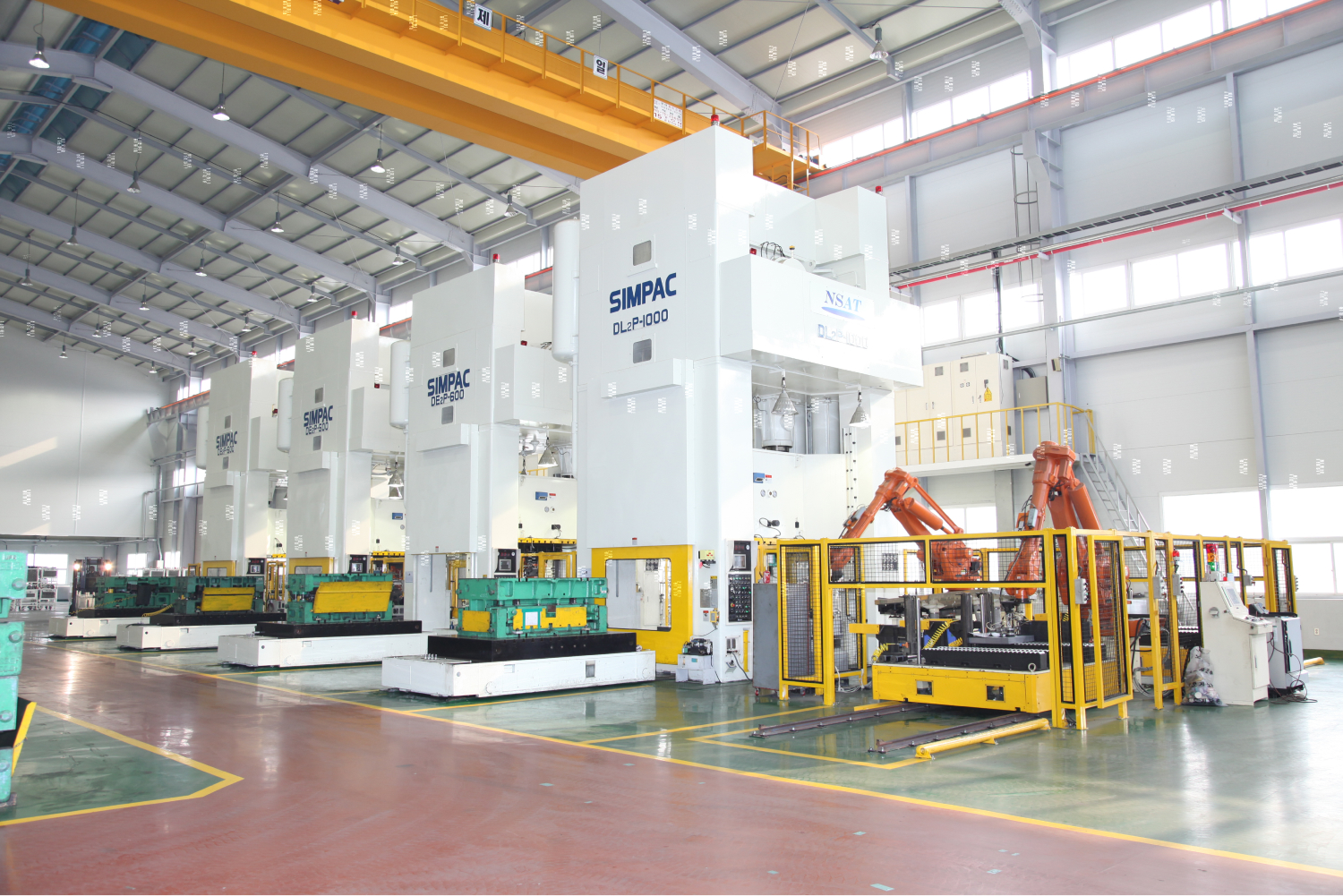

DL4P Series - 4-Point Design Mechanical Presses

Model Unit DL4P-600 DL4P-800 DL4P-1000 DL4P-1200 DL4P-1500 DL4P-2000 DL4P-2500
Press Capacity ton 600 800 1000 1200 1500 2000 2500
Rated Tonnage Point mm 13.0 13.0 13.0 13.0 13.0 13.0 13.0
Stroke Rate spm 10-20 10-20 10-20 10-20 10-20 9-18 9-18
Stroke Length mm 800 800 800 800 800 800 800
Slide Adjustment mm 600 600 600 600 600 600 600
Die Height mm 1300 1300 1300 1300 1300 1300 1400
Slide Dimension mm 3200x2100 3200x2100 3400x2300 3400x2300 4500x2500 4500x2500 4500x2800
Bolster Dimension mm 3200x2100 3200x2100 3400x2300 3400x2300 4500x2500 4500x2500 4500x2800

* SDAU = Slide stroke down, adjustment up | ST = Standard, HS = High-Speed, LS = Long Stroke | Subject to technical modifications.

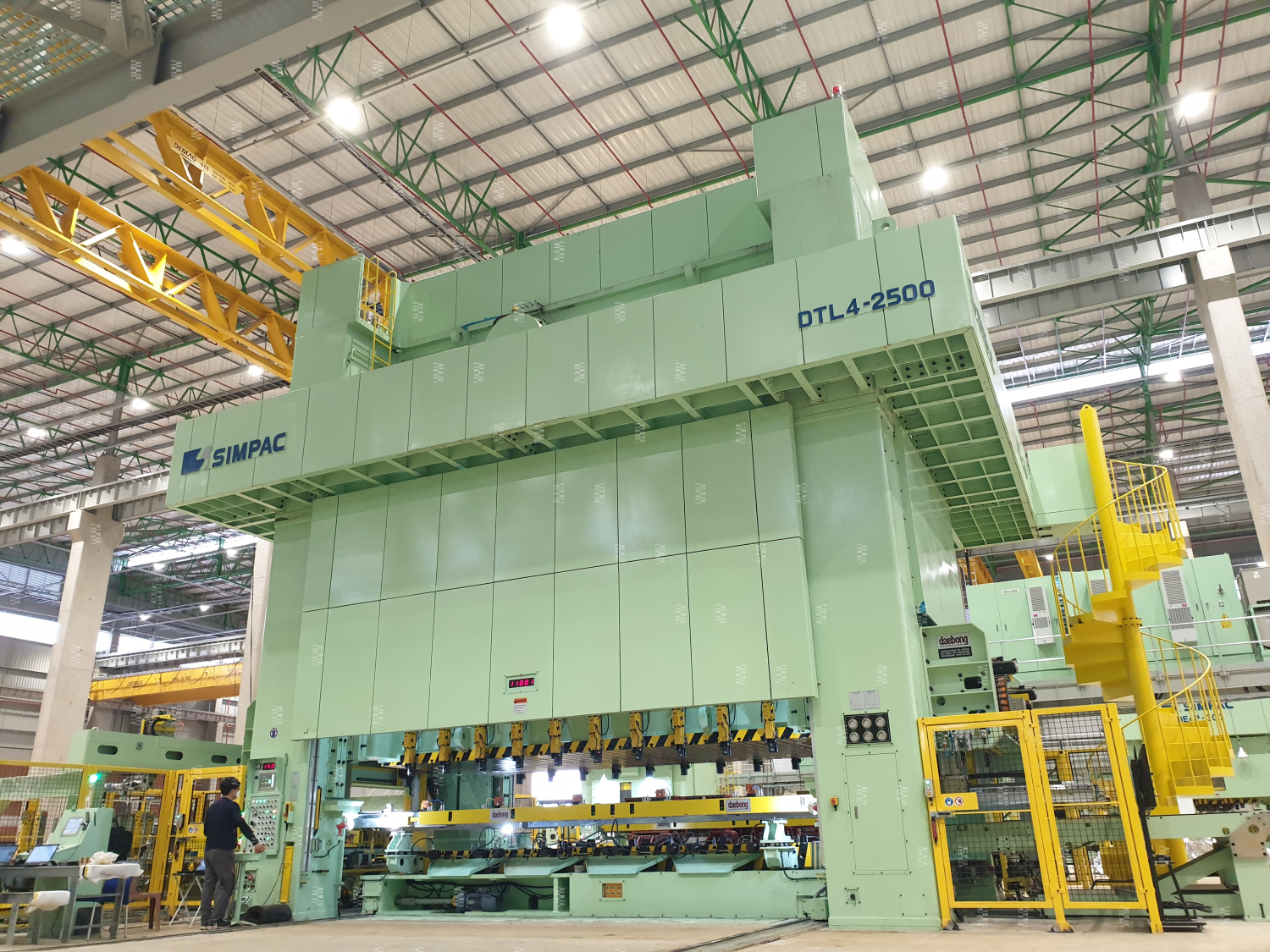

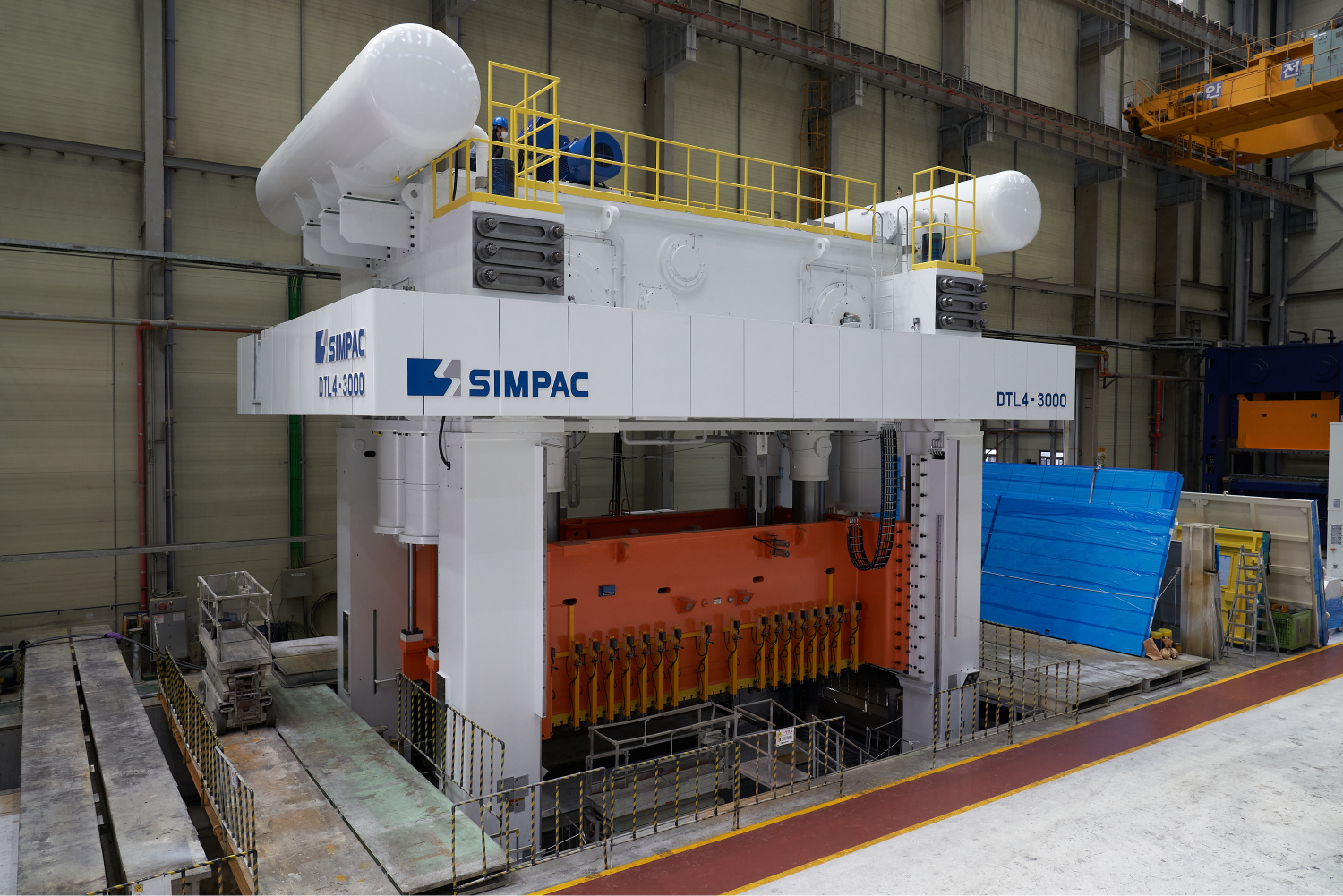

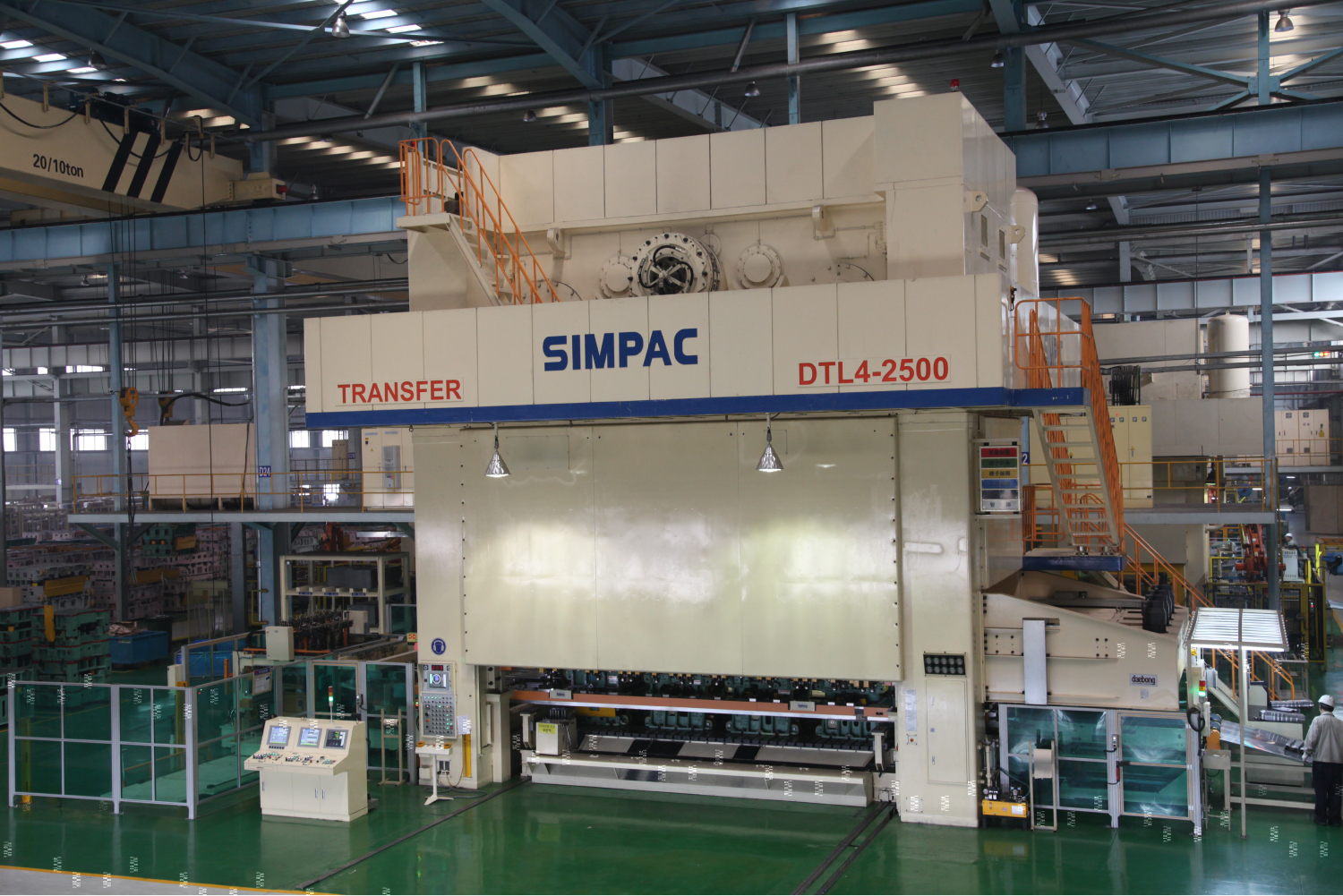

DTL Series - Enhanced Technology Edition

Model Unit DTL2-1000 DTL2-1200 DTL2-1500 DTL2-2000 DTL4-1500 DTL4-2000 DTL4-2500 DTL4-2600
Press Capacity ton 1000 1200 1500 2000 1500 2000 2500 2600
Rated Tonnage Point mm 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0
Stroke Rate spm 10-20 10-20 10-20 10-20 12-25 12-25 12-25 12-25
Stroke Length mm 600 600 600 650 700 700 800 800
Slide Adjustment mm 600 600 600 600 600 600 600 600
Die Height mm 1200 1200 1200 1200 1200 1200 1200 1200
Slide Dimension mm 4000x1700 4000x1700 4500x1700 4500x2400 5500x2500 6300x2400 6300x2400 6300x2400
Bolster Dimension mm 4000x1700 4000x1700 4500x1700 4500x2400 5500x2500 6300x2400 6300x2400 6300x2400

* SDAU = Slide stroke down, adjustment up | ST = Standard, HS = High-Speed, LS = Long Stroke | Subject to technical modifications.

Key Technical Features

Precision Control

Advanced mechanical drive systems with ±0.01mm precision for consistent production quality.

High Performance

Optimized stroke rates from 27-70 SPM depending on model capacity and application requirements.

Flexible Configuration

Adjustable slide stroke and die height to accommodate various tooling and production needs.

Safety Standards

Built-in safety features including light curtains, emergency stops, and comprehensive monitoring systems.

Automation Ready

Designed for seamless integration with robotic systems and automated production lines.

Easy Maintenance

Accessible design for simplified maintenance procedures and reduced downtime.

Industrial Applications

Versatile mechanical press solutions for diverse manufacturing needs

Automotive Industry

Body panels, structural components, and precision parts manufacturing

Body Panels Structural Parts

Aerospace

High-precision components and structural elements production

Critical Components High Precision

Electronics

Precision electronic components and connector manufacturing

Connectors Circuit Boards

Consumer Goods

Household appliances and consumer product manufacturing

Appliances High Volume
